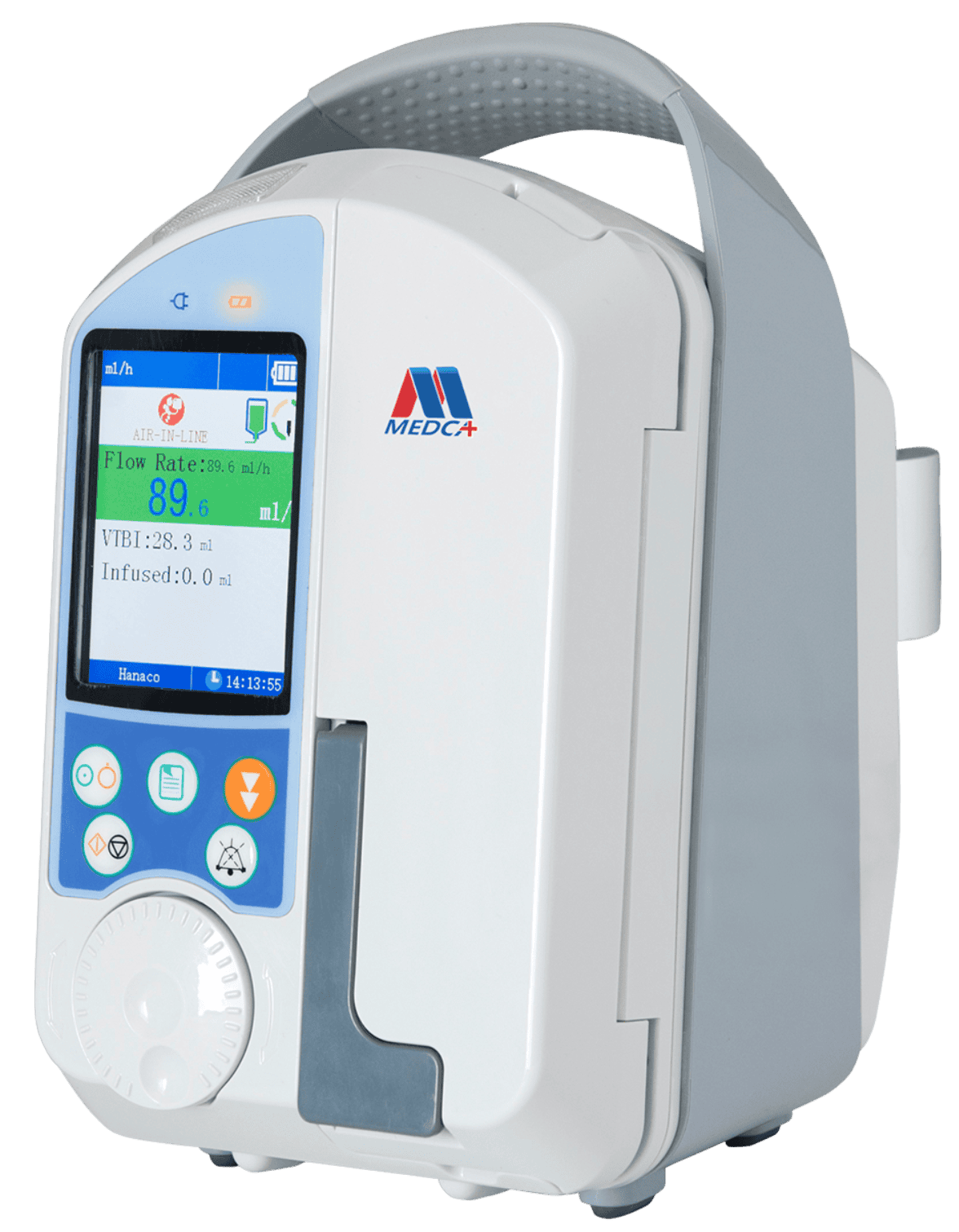

Infusion Pump Multimode 02 (MVP-02)
The Infusion Pump Multimode 02 is an advanced infusion pump designed to deliver fluids, medications, and nutrients using multiple infusion modes according to patient requirements. With precise flow control and multimode functionality, it enables healthcare providers to customize infusion therapy with accuracy and reliability. Equipped with an interactive digital display, safety alarm system, and user-friendly design, the Infusion Pump Multimode 02 ensures safer, more flexible, and efficient patient care in both hospitals and clinics
Product Specifications
Pump Mechanism
Peristaltic Finger
Purge, Bolus
100 – 1500 ml/h (in increments of 1 ml/h), Purge when the tube stops, Bolus when the tube starts
Accuracy
±4%
VTBI
1 – 20,000 ml (in 0.1 ml increments)
KVO Rate
0.1 – 5 ml/h (in 0.1 ml increments)
Battery
9.6±1.6 V, rechargeable
Operating Temperature
10 – 30°C
Atmospheric Pressure
860 – 1060 hPa
Weight
2.5 kg
Flow Rate
0.1 – 1500 ml/h (in increments of 0.1 ml/h)
Bolus Volume
1 – 20 ml (in 1 ml increments)
Built-in Thermostat
30 – 45°, adjustable
Infusion mode
ml/h, drops/min, time-based, weight-based, nutrition-based
Power Supply, AC
110/230 V (selectable), 50-60 Hz, 20 VA
Battery Life
5 hours at 25 ml/h
Relative Humidity
30 – 75%
Dimensions
130 (W) x 145 (L) x 228 (H) mm
Safety Classification
Class I, Type CF
