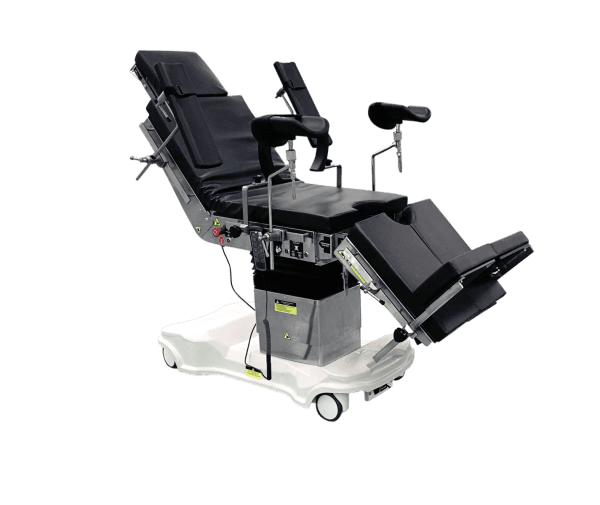

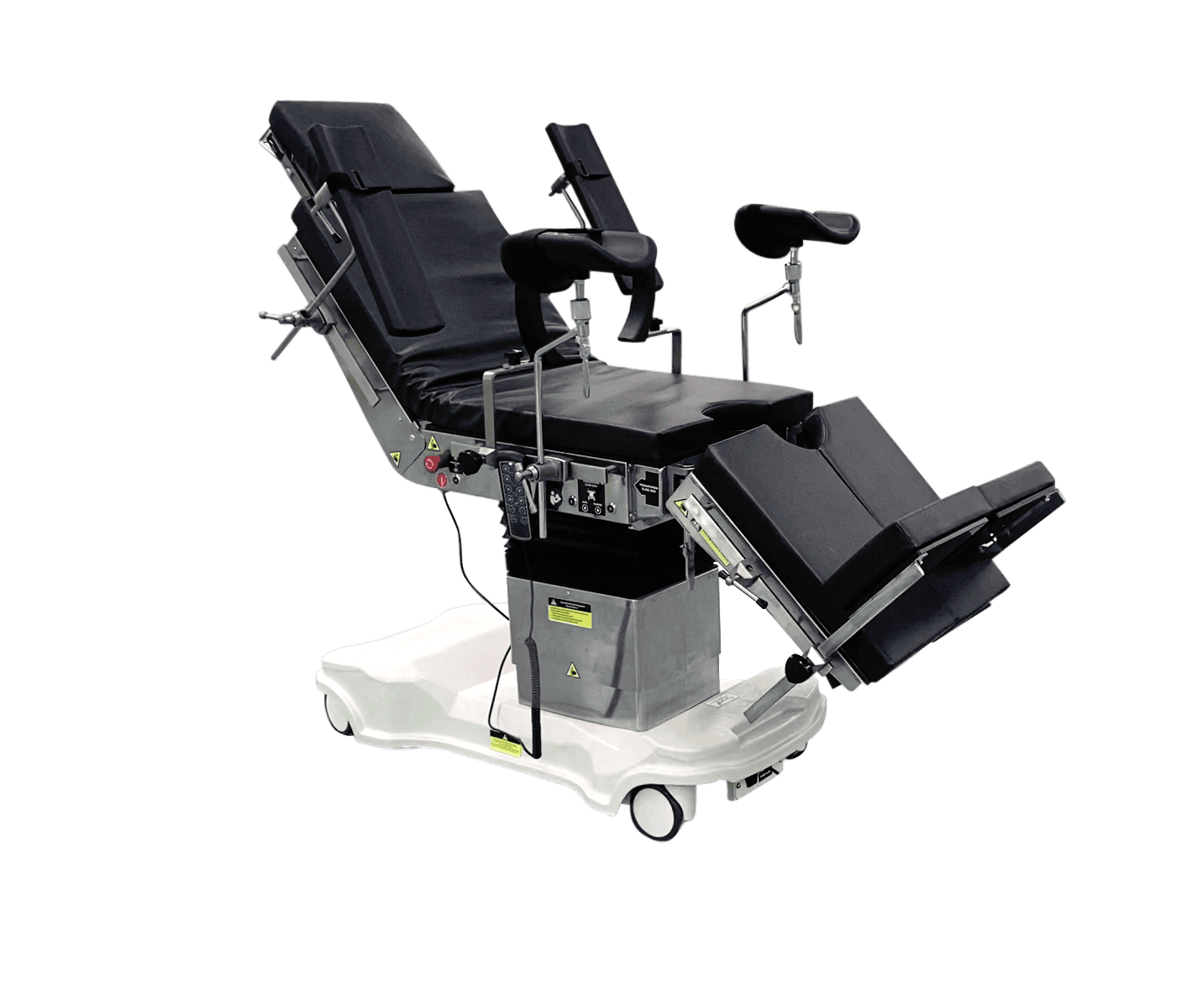

Electric Operation Table 7 Motors
The electric operating table is a table that assists patients and medical personnel during surgical procedures on patients. The operating table utilizes innovative technology to create an ideal combination of clinical benefits for patients and medical personnel. Special features support the important functions of patient positioning, surgical effectiveness, and provide excellent working conditions for medical personnel to help minimize risks associated with surgical procedures on patients with high precision. This ensures that difficult-to-achieve patient positions can be adjusted according to the needs of medical personnel and are safe during surgical procedures
Product Specifications
Overall Dimension
2263 mm x 522 mm
Overall Net Weight
200 kg
Caster Size
100 mm
Maximum Height
970 mm
Minimum Height
720 mm
Adjustment Ranges
250 mm
Reversed Trendelenburg
≥ 22°
Trendelenburg
≥ 22°
Lateral Tilt
≥ 22°
Head Section
325 x 280 mm
Kidney Bridge
130 x 522 mm
Backrest Section
522 x 500 mm
Seat Section
522 x 484 mm
Foot Step Section
263 x 200 mm
Leg Section
253 x 510 mm
Head Section Raised From Horizontal Position
≥ 45°
Head Section Lowered From Horizontal Position
≥90°
Back Section Raised From Horizontal Position
≥ 65°
Back Section Lowered From Horizontal Position
≥ 10°
Leg Section Opened
≥90°
Lifting Speed
6,2 – 20mm/s
Maximum Patient Weight
150 kg
