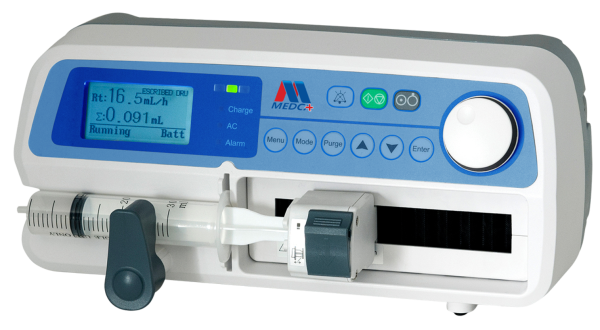

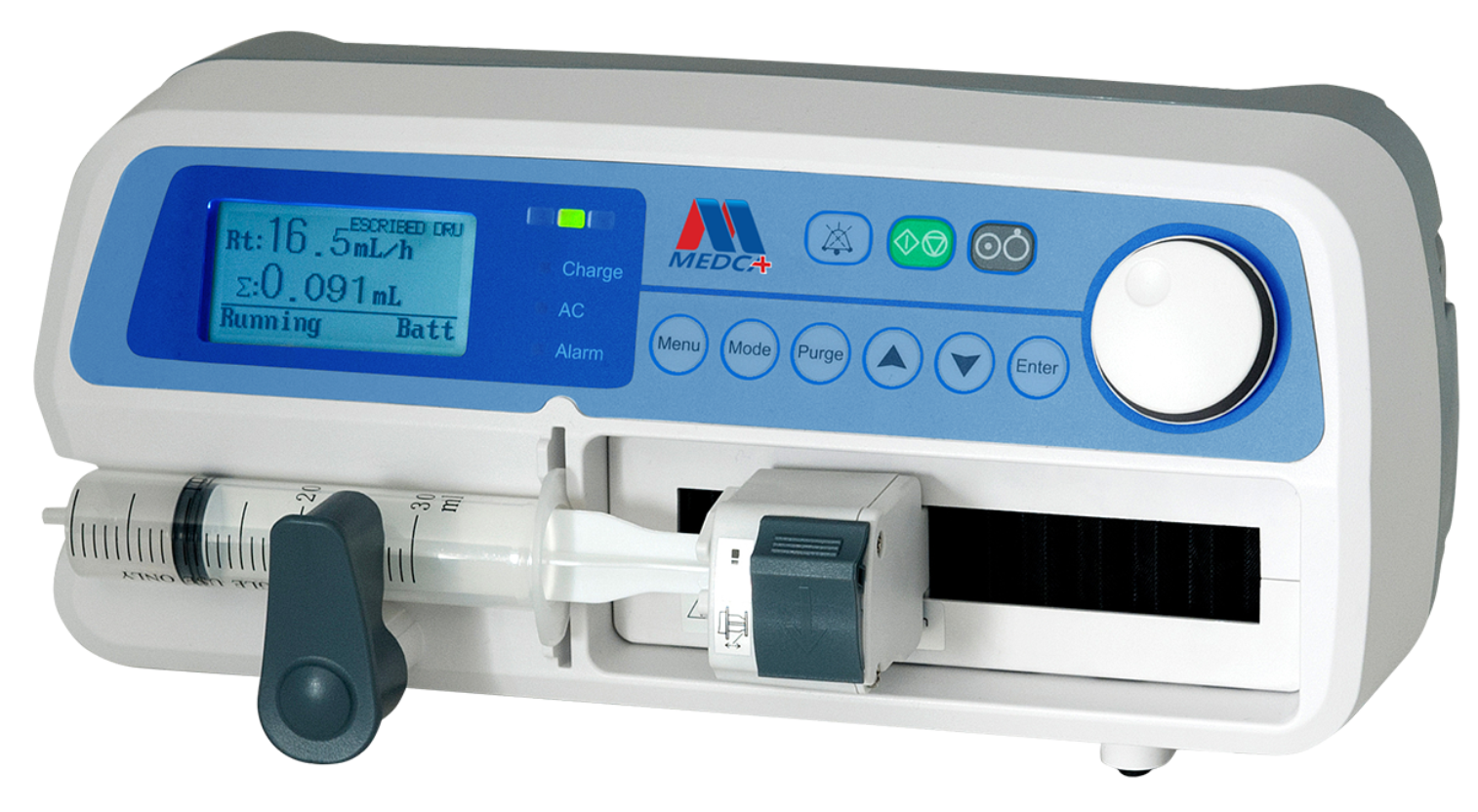

Syringe Pump (MSP-03)
Our syringe Pump is a compact and reliable infusion device designed for accurate and continuous delivery of fluids and medications. With multiple operating modes, user-friendly controls, and compatibility with various syringe brands, it ensures flexibility in clinical use. Features include low-noise operation, anti-bolus function, and audio-visual alarms for enhanced safety. The automatic Keep Vein Open (KVO) mode helps maintain infusion continuity after completion. Its lightweight design, precise flow adjustment, and intuitive interface make it suitable for a wide range of medical settings where precision and reliability are essential.
Product Specifications
Syringe Size
10, 20, 30, 50/60 ml
Flow Rate
50/60 ml syringe : 0.1 – 1300 ml/h
Bolus Rate
10 ml syringe: 400 ml/h
Bolus Rate
50/60 ml syringe: 1300 ml/h
VTBI
0.1 – 9999 ml/h
KVO Rate
0.1 – 1 ml/h (in increments of 0.1 ml/h)
Battery
9.6±1.6V, rechargeable
Operating Temperature
5 – 40°C
Atmospheric Pressure
860 – 1060 hPa
Weight
2.5 kg
Flow Rate
10 ml Syringe: 0.1–400 ml/h,
Flow Rate
≥100 ml/h in increments of 1 ml/h
Bolus Rate
20 ml syringe: 600 ml/h
Accuracy
±2% (mechanical accuracy ≤1%)
Infusion Mode
Flow rate: ml/min, ml/h based on time Body weight: mg/kg/min, mg/kg/h, ug/kg/min, ug/kg/h, etc.
Power Supply, AC
110/230 V (selectable), 50/60 Hz, 20 VA
Battery Life
7 hours at 5 ml/h
Relative Humidity
20 – 90%
Dimensions
314 (W) × 167 (L) × 140 (H) mm
Safety Classification
Class II, Type CF
